LX 10K.
The ultimate upgrade.
The latest vario-navigation system with the biggest digital display in an 80 mm instrument — always in pair with a vario indicator, analog or digital.
Documentation →
Your old LX, reborn.
LX 10K was developed to replace older-generation LX vario systems — same user logic and operation simplicity, with the modern features on top.
The 80 mm main unit and the vario indicator drop into the openings your old LX system already occupies.
Knob-and-button flow follows the classic LX systems — pilots who flew an LX 5000 feel at home on the first flight.
One CAN bus between the units, GPS and Bluetooth/WiFi antennas, SD card and a backup battery. Your dealer supplies the right harness for your airframe.
See it fly.
Feature packed system.

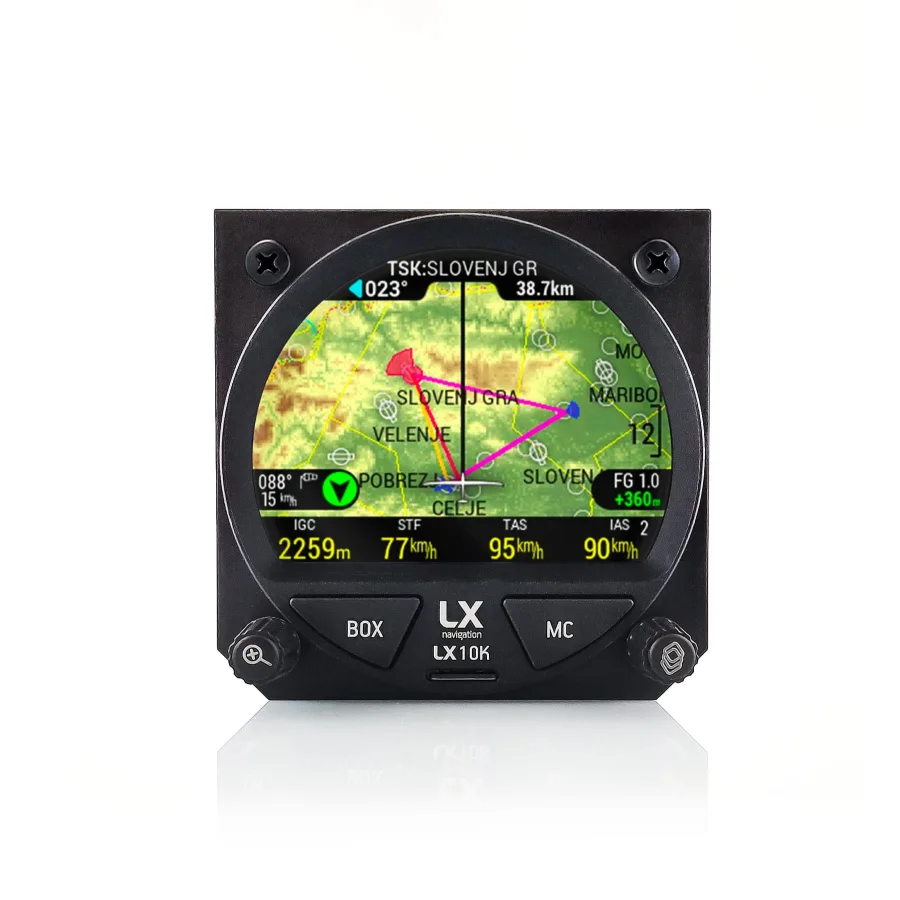

LX 10K packs the biggest digital display ever fitted to an 80 mm navigation instrument — with transflective technology that gets more readable in direct sunlight.
Full moving-map navigation with 3D terrain, airspace and task support — the score sheet view, live in your panel.
Designed as the upgrade for older LX vario-navigation systems: same user logic, same cutouts, installed in less than half an hour.
An IGC-approved flight recorder with engine noise level is built in, backed by the internal battery.
Declare tasks, download flights and update databases wirelessly — plus SD card, CAN, FLARM and user ports on the back.
The built-in backup battery keeps the system and the recorder alive for 3–5 hours if the ship power fails.
Pick your vario indicator.

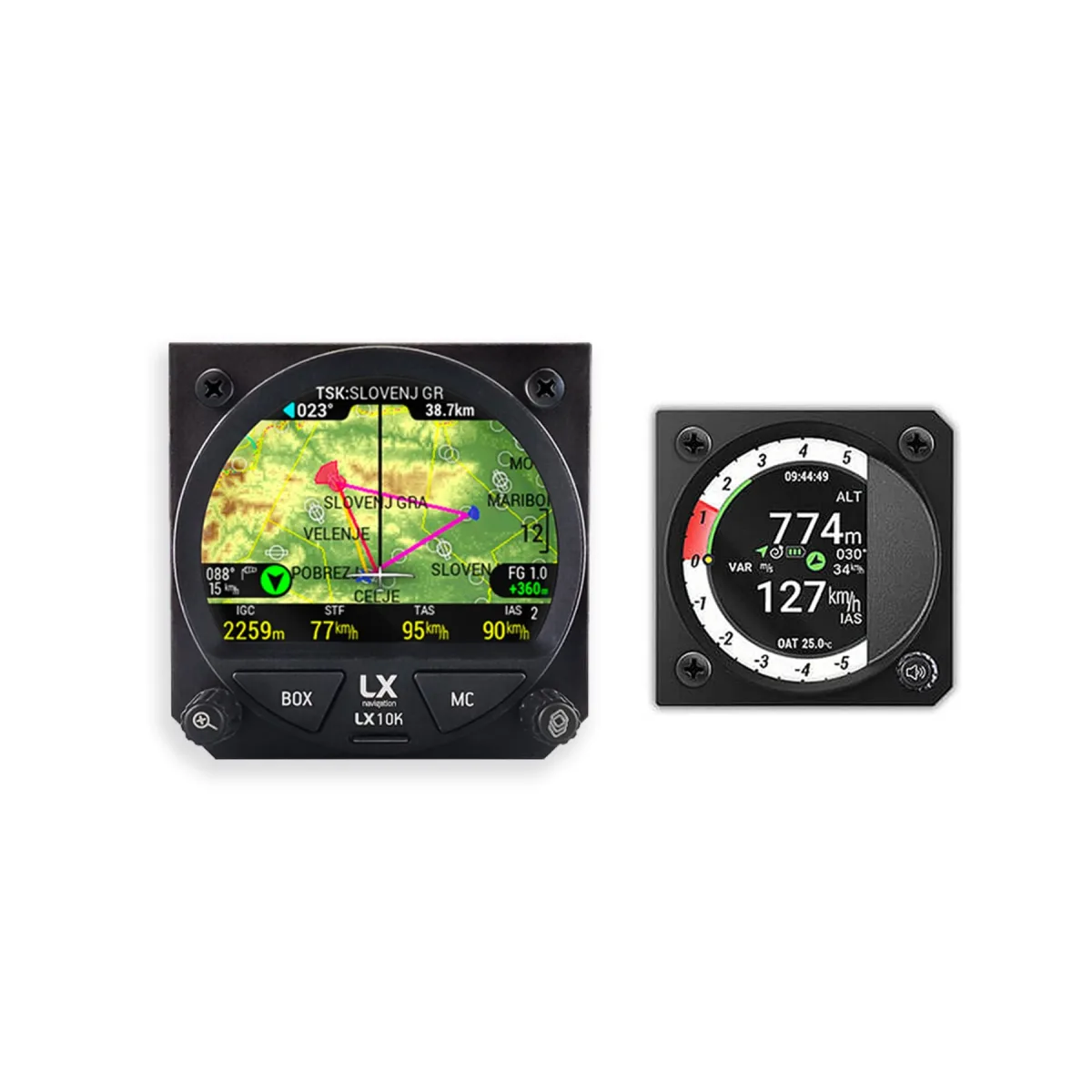

The LX 10K always flies in pair with a vario indicator on the CAN bus — choose the format that fits your panel and your habits.
The classic needle over an LCD window — zero-lag mechanical feel, powered and fed through a single CAN-BUS cable.
Behind the crystals sits a semi-transflective layer that reflects direct sunlight — in the cockpit, the pilot sees it better than any other display technology available today.

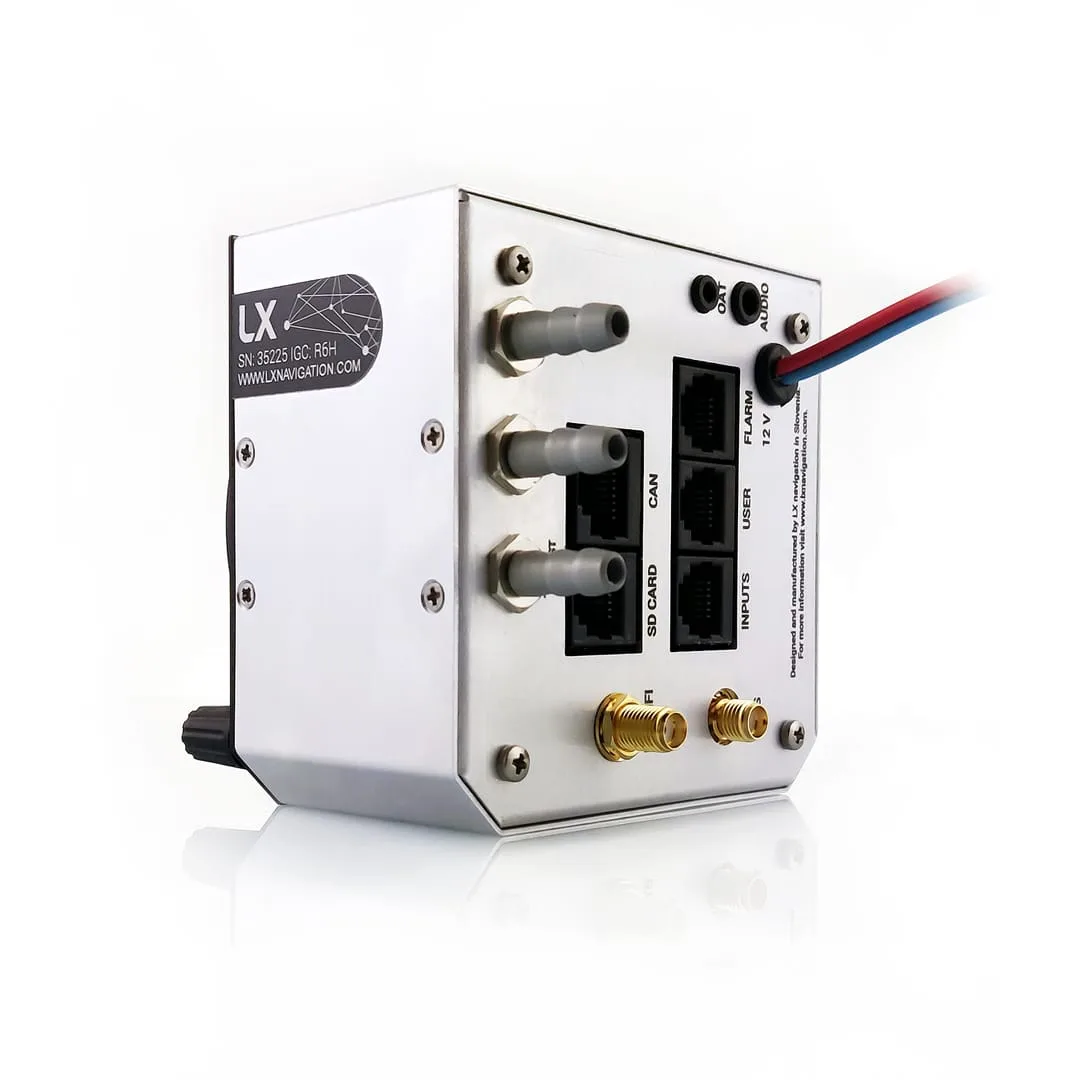

CAN, FLARM, SD card, inputs, audio and antennas — labelled on the housing, wired in under half an hour, no cutting or drilling required.
The numbers behind the system.
More information.
Technical specification
- Main unit: 82 × 82 × 52 mm · 3.5″ · 313 g · portrait orientation
- Processor: LX one chip, 32 GB internal + 16 GB external memory
- Power supply: 12 V DC · 250 mA @ 12 V (without vario)
- Built-in backup battery in the vario unit, 3–5 hours
- IGC-approved flight recorder with ENL for combustion engines
- 2 marked buttons (BOX, MC) and 2 push-rotary knobs — zoom left, pages right
Connectivity
- RJ12 SD CARD port
- RJ45 CAN port
- RJ12 INPUTS port
- RJ12 USER port
- RJ12 FLARM port
- 2.5 mm jack OAT port
- 3.5 mm jack AUDIO port
- 12 V power cable with connector
- SMA Bluetooth/WiFi antenna connector
- SMA GPS antenna connector
What's in the box
- LX 10K main unit
- Vario indicator (Analog vario indicator 57 is default)
- 16 GB Micro SD card
- OAT probe with 2.5 mm jack
- Audio speaker with 3.5 mm jack
- Inputs interface with RJ12 connector
- 40 cm CAN-BUS cable
- Bluetooth/WiFi antenna with SMA connector
- GPS antenna with SMA connector
Support and warranty
Your LX 10K comes with technical support and a two-year limited warranty. Contact our local dealer for upgrade options.
Frequently asked questions
Which old systems does the LX 10K replace?
The LX 4000, LX 5000, LX 7000 and LX 7007 pro IGC — with the same user logic and operation simplicity, so retraining club pilots takes minutes, not weekends.
Do I need to cut a new panel opening?
No. The main unit uses the 80 mm cutout and the vario indicator a 57 or 80 mm one — no cutting or drilling, installed in less than half an hour.
Is a vario indicator included?
Yes — the LX 10K always ships in pair with a vario indicator. The analog 57 is the default; digital 57 and 80 mm indicators are available instead.
Does it record IGC flights?
Yes — an IGC-approved flight recorder with ENL for combustion engines is built in, kept alive by the internal backup battery for 3–5 hours.
